Chrome Moly A-Arms
Save weight and increase caster with Race Shop components

Chrome Moly Control Arms
Click image to Zoom


Click image to Zoom

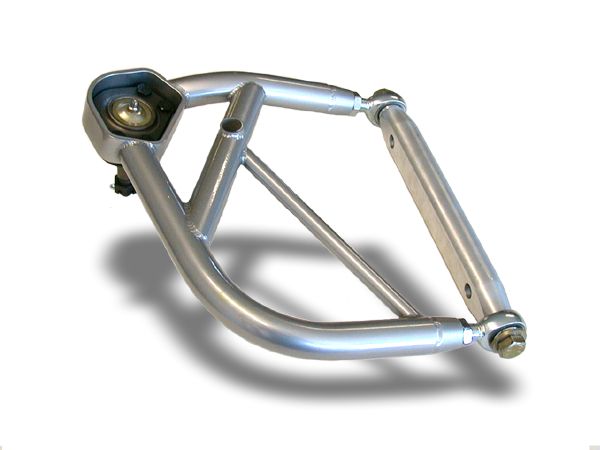

David Lemmond's Race Shop A-arms are manufacturered from Chrome Moly Steel, fully Tig Welded and feature billet aluminum cross shafts. A high degree of adjustability is available using heim joints in the upper arms instead of bushings. Heim joints also gives your suspension less drag during movement.

  • 26 lbs weight savings over stock control arms.
  • Designed to allow up to 8 Degrees of positive caster.

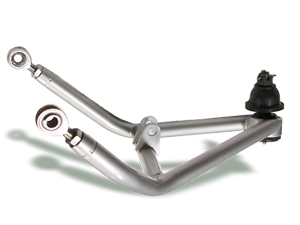

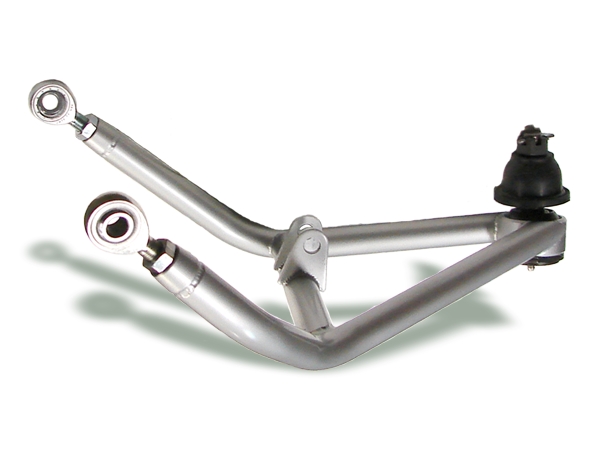

  • Lower Arms have a Heim joint mount for coil over shocks and now feature adjustable heim joints at the frame mounts for greater adjustment capability and reduced drag.
  • Upper a-arms have a built in travel limiter bolt location that lines up with the stock pad on the frame.
  • Shipped with MOOG brand stock style upper ball joint and Chrysler style screw in ball joint in lowers. Both ball joints work correctly with stock spindles without modifications.
  • Black powdercoated

Available for 68-74 Nova and 67-69 Camaro. Malibu available in the near future.

NOTE: We've improved the lower a-arm design! They now feature Heim ends instead of rubber bushings where they attach to the frame.

Price: Black Powder Coated Control Arm Set $850.00 (2 upper & 2 lower) + shipping (for chrome silver w/clear coat as shown in photos add $50.00)

Weights

  • Upper - 5.85 lbs w/ball joint & Nut
  • Lower -

Compare

  • Stock 3rd Gen Nova / 1st Gen Camaro Upper A-Arms Weigh 9.5 lbs w/ball joint
    Stock 3rd Gen Nova / 1st Gen Camaro Lower A-Arms Weigh 13.7lbs w/ball joint
